machine features
-
Specifications
Parameter
-
laser machine category

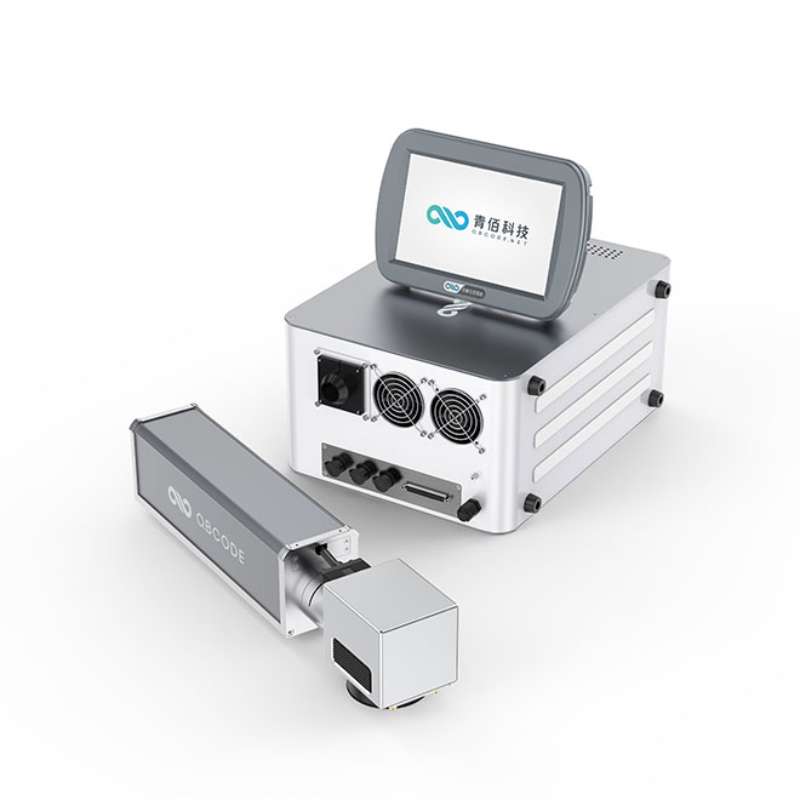

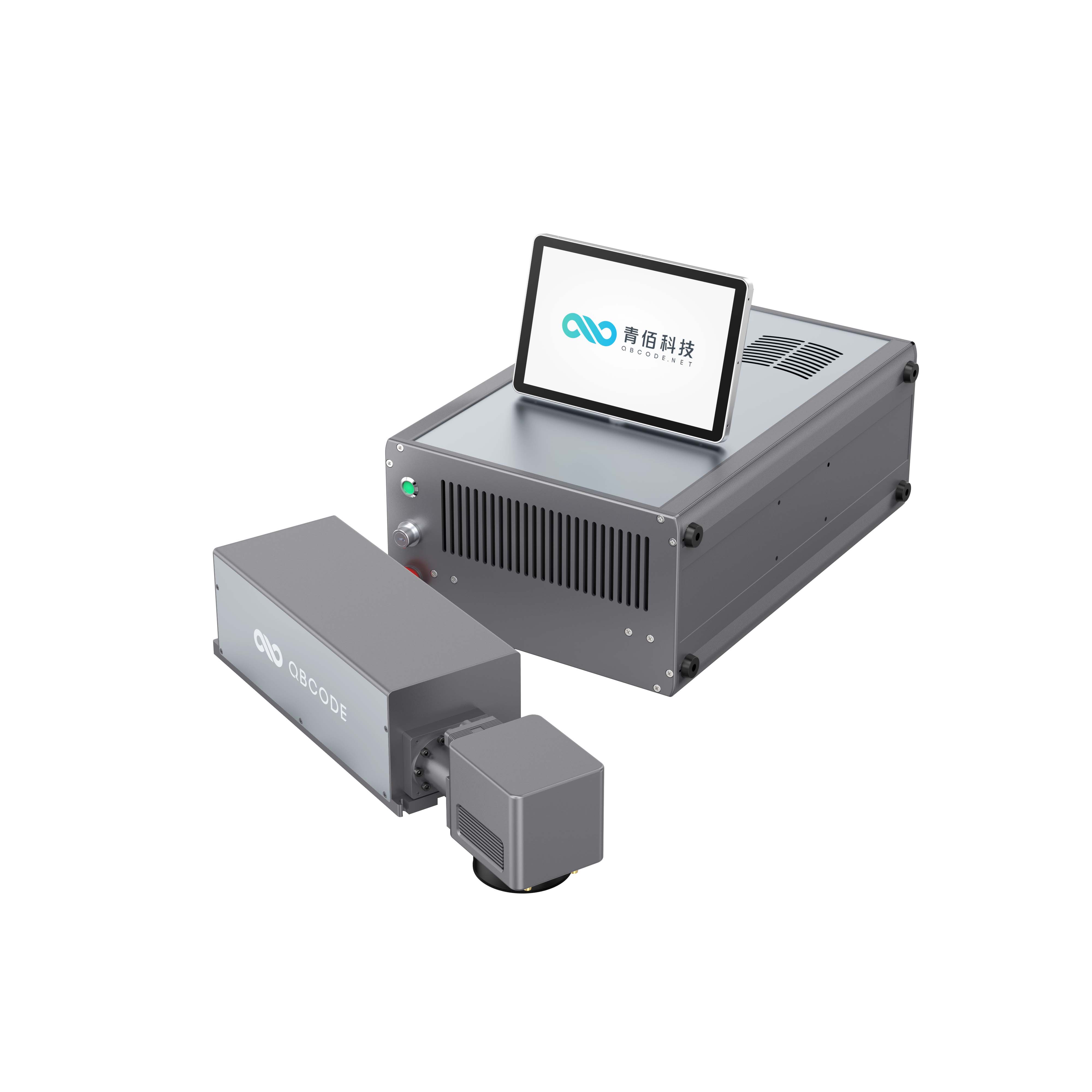

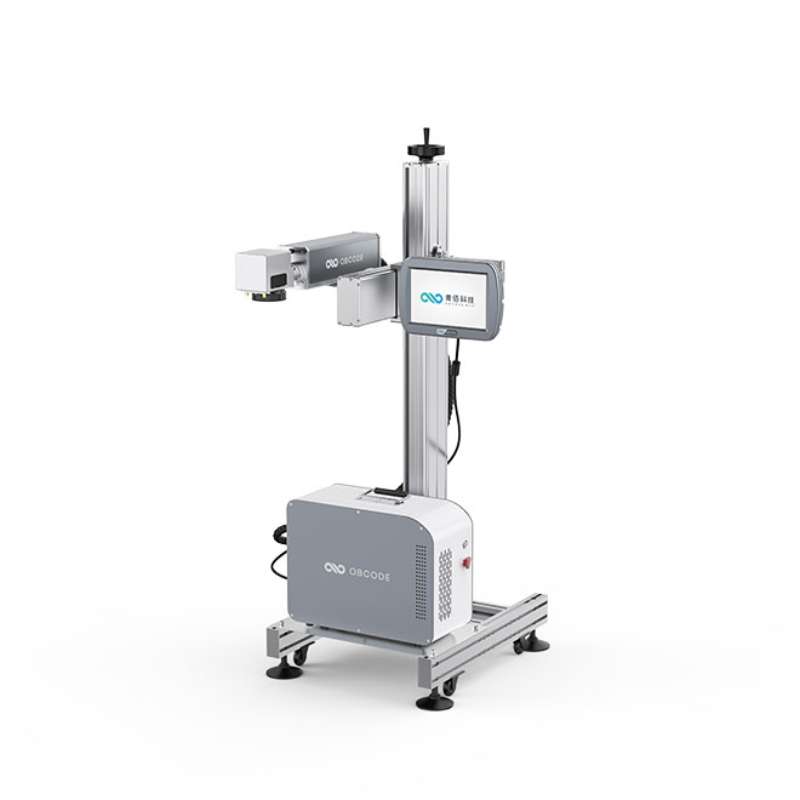

QB-F Series F2010/F3010/F5010 Fiber Laser Marking Machine
-
material structure of the whole machine
Aluminum structures+cast iron
-
laser
Fiber laser generator
-
continuous output power
≥20 / ≥30 / ≥50
-
wavelength
1064nm
-

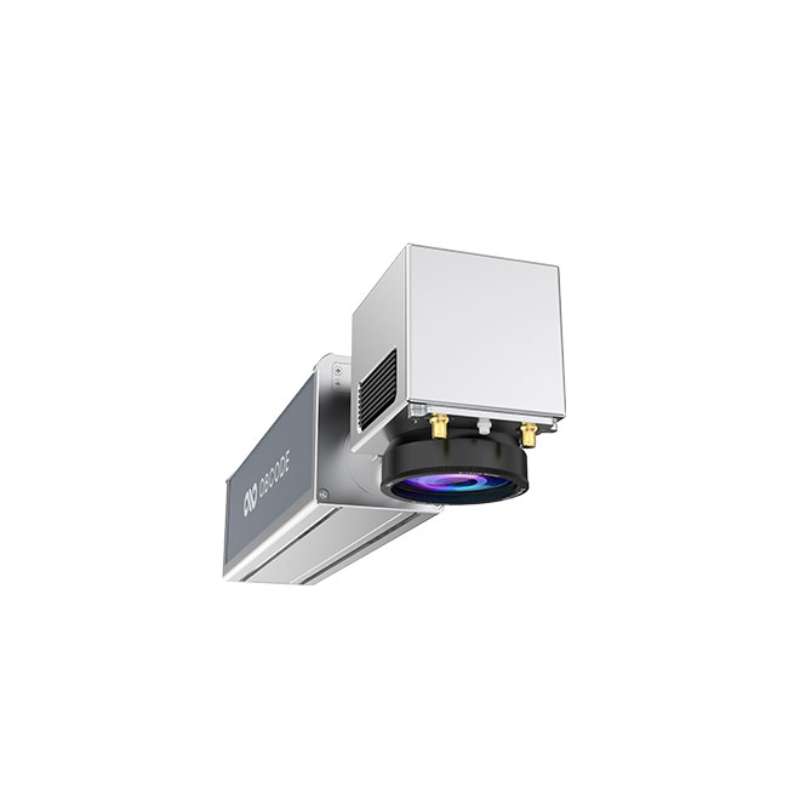

deflection galvanometer
High precision 2 dimensional scanning system
-
marking speed(1)
2000mm/s
-
positioning speed
＜10000mm/s
-
master control
Highly integrated mainboard, Embedded 10.6inch controller, dual system operation
-
cooling system
Air-cooled
coding parameters
-
focus
Double red light focusing
-
marking line type
Raster font, vector font for choosing
-
minimum line width
0.012mm
-
repeat positioning accuracy
＜2urad
-
marking range(2)
110*110（Optionally available）
-
positioning mode
Red light positioning and double red light focusing
-
number of lines of engraved characters
No limited in working area
-
production line speed(3)
0-180m/min / 0-180m/min / 0-220m/min
servicing parameter
-
power supply
AC100-240V 50/60Hz
-
power consumption
600W / 600w / 800w
-
remarks: (1) refers to the marking speed under the condition of obtaining high-quality marking effect with small characters (1mm), and does not represent the highest marking speed; According to different marking contents and effects, the maximum marking speed can be as high as the maximum positioning speed. (2) The marking range is not fixed, and different ranges (50-500) can be selected. (3) the production line speed is determined according to the production line speed adapted to the marking speed
