machine features
-
Specifications
Parameter
-
laser machine category

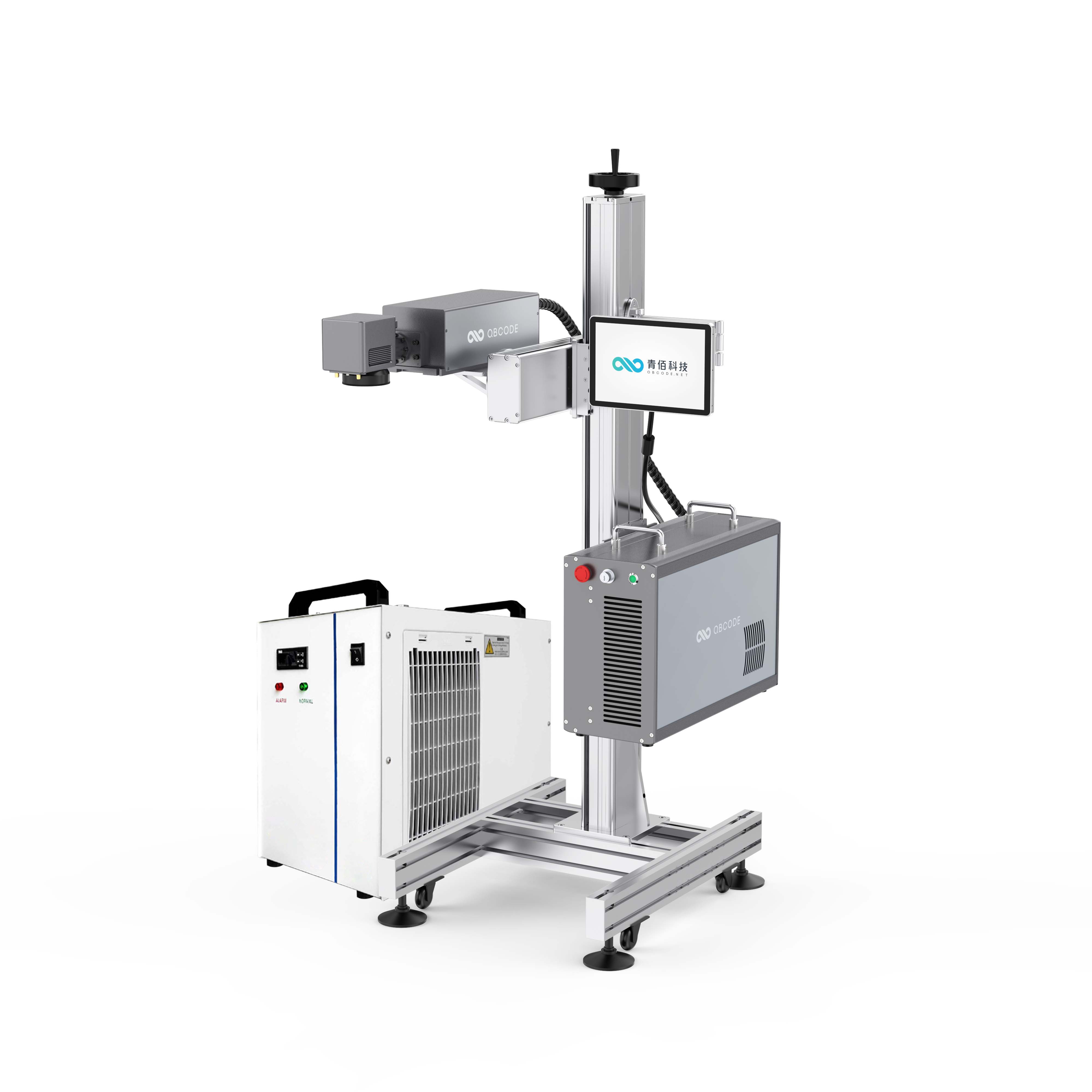

QB-U Series U0310/U0510 UV Laser Marking Machine
-
material structure of the whole machine
Aluminum
-
laser
UV laser generator
-
continuous output power
3W / 5W / 10W
-
wavelength
355nm
-
deflection galvanometer
-
marking speed(1)
10000mm/s
-
positioning speed
-
master control
10.6-inch controller, flight coding system
-
cooling system
Water-cooled
coding parameters
-
focus
Double red light focusing
-
marking line type
Raster font, vector font for choosing
-
minimum line width
0.1mm
-
repeat positioning accuracy
±0.002
-
marking range(2)
100-300mm (Optional)
-
positioning mode
Red light positioning and double red light focusing
-
number of lines of engraved characters
No limited in working area
-
production line speed(3)
servicing parameter
-
power supply
220V / 50Hz (110V enable)
-
power consumption
500W
-
remarks: (1) refers to the marking speed under the condition of obtaining high-quality marking effect with small characters (1mm), and does not represent the highest marking speed; According to different marking contents and effects, the maximum marking speed can be as high as the maximum positioning speed. (2) The marking range is not fixed, and different ranges (50-500) can be selected. (3) the production line speed is determined according to the production line speed adapted to the marking speed
